The Anatomy of a Watch – Understanding the Different Parts

Date

05.09.23

Learn about the basic parts that make up a watch, including the case, crystal, crown, hands, dial, movement, complications and more.

At first glance, watches may seem like simple accessories used for telling time. But inside these handy timekeeping devices are actually many intricate, technical parts working together in harmony. While watches come in different styles and designs, most contain the same essential components that make them function properly.

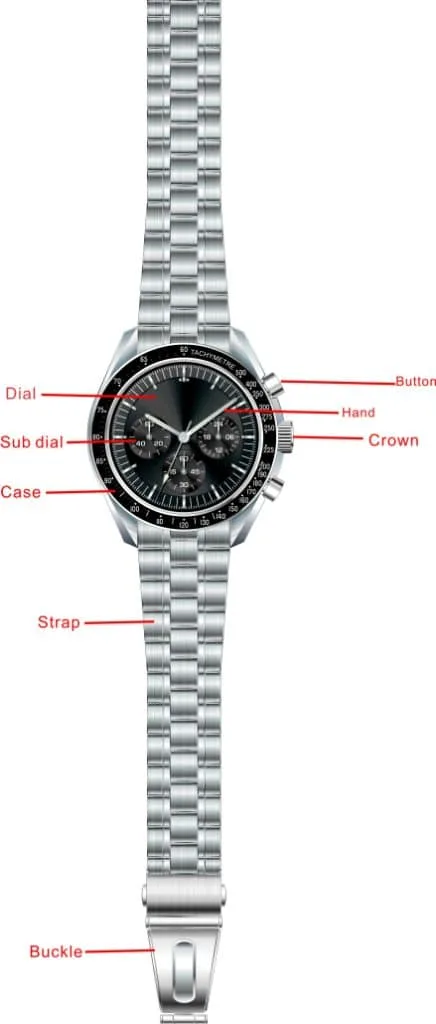

In this blog, we will dive inside a watch and explore its anatomy and main parts. Understanding the basic components of a watch allows you to appreciate the craftsmanship and engineering involved in watchmaking. It also helps you make sense of technical descriptions when shopping for a new timepiece.

We’ll start with the case, the housing that encases and protects the most vulnerable parts inside. Then we’ll look at the crystal, the transparent cover over the watch face. Next are the hands and dial used for displaying the time. We’ll also examine the movement, the complex mechanism powering the watch, and any extra complications beyond just telling time. Finally, we’ll overview how the strap or bracelet allows you to fasten the watch securely around your wrist.

While a watch may seem simple on the outside, it actually contains many intricate parts and components working together in unison. Gaining knowledge of the anatomy of a watch provides insight into this micro world of minute technology and craftsmanship. Understanding the form and function allows you to appreciate the skill and engineering required to create even an “ordinary” watch.

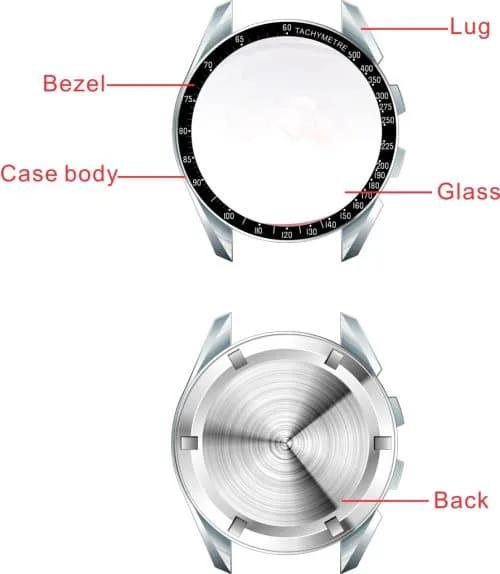

Watch Case

The case is the foundation that holds all the parts of a watch together. Acting as the watch’s outer shell, it encases and protects the fragile inner workings from damage and debris.

Cases come in a variety of shapes, sizes, colors, and materials. Round is the most common case shape, but rectangular, oval, and square cases also exist. Cases generally range from 20mm to 50mm in diameter. Popular case materials include stainless steel, platinum, gold, titanium, ceramic, and plastic resin. High-end luxury watch cases often use precious metals or ceramics.

The case back covers the rear of the watch and attaches to the case. Case backs can be solid or transparent to allow viewing of the inner mechanism. Water-resistant watches will have a tightly sealed case back to prevent moisture intrusion. An engraved case back can display information like the brand name, limited edition number, or insignia.

Some watches feature a monocoque case where the case back and body are carved from one solid block. This creates a seamless enclosure with enhanced water resistance. More complex cases may contain multiple parts like a middle case for holding the inner parts or bezel to secure the crystal.

The watch crystal also fits into the case front to protect the dial and hands. Various materials like sapphire, acrylic, and mineral glass can be used for crystals. High quality watches tend to use sapphire crystals which are very scratch-resistant.

The case finishing describes the final treatment given to the case surface. Polishing, brushing, sand-blasting to create different textures, and coatings like PVD or DLC can be applied as finishing techniques. This provides aesthetic appeal and protects the case exterior from scratches or tarnishing.

Watch Crystal

The crystal is the transparent cover that sits over the dial and protects the watch face. Also known as the glass, this part shields the delicate dial and hands while still allowing the user to view the time.

Crystals can be made from different materials, each with their own advantages and disadvantages. Sapphire crystals are considered the best choice for high-end watches given their extreme hardness and scratch resistance. However, they are also the most expensive option. Acrylic crystals are very affordable but easier to scratch. Mineral glass falls between sapphire and acrylic in terms of cost, hardness and durability.

The shape of the crystal needs to match the watch face. Common shapes are round, rectangular, and square. Some crystals feature a domed or curved shape for a magnifying effect that makes the dial appear larger. Other decorative crystals may use elaborate shapes and cuts to add interest.

Crystals are specially fitted into the watch case to securely protect the dial. Gaskets or seals prevent moisture from entering where the crystal joins the case. Cyclops crystals have a built-in magnified window over the date. Non-reflective coatings can be added to crystals to reduce glare.

For an added luxury feel, some high-end watches use box-shaped sapphire crystals with sharply angled sides. This distinguishes them from the typical rounded crystals. The extra facets refract light in appealing ways.

When selecting a watch, the crystal is an important factor as it’s responsible for protecting the dial and hands. Pay attention to the material, shape, treatments and style of the crystal during your search.

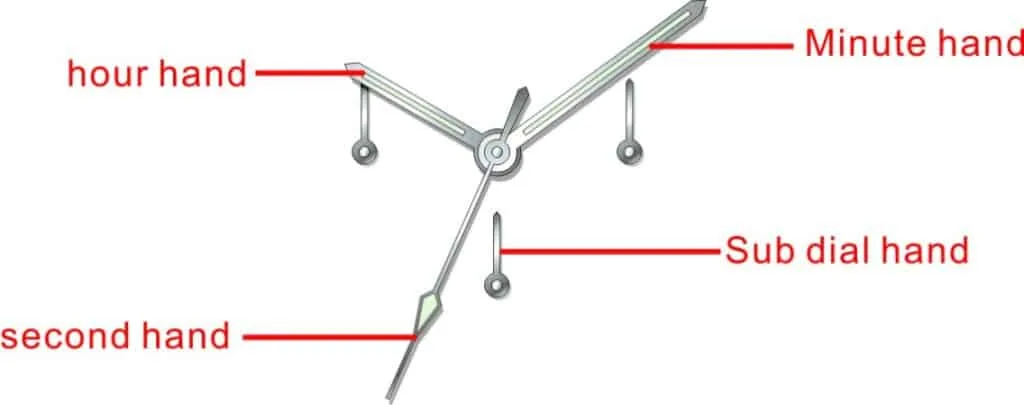

Watch Hands

The hands are the moving components that indicate the hours, minutes and sometimes seconds on a watch. Different hand styles and designs create visual interest on the watch face.

The hour hand is shorter and indicates the hour. The minute hand is longer and indicates the minutes. The second hand is optional and ticks each second. Hands come in varying lengths and widths depending on the watch style.

Common hand shapes include:

Stick hands – Long narrow rectangular hands. Simple and legible.
Sword hands – Pointed arrow hands inspired by swords. Eye-catching shape.
Skeleton hands – Cutout design that is see-through. Funky modern look.
Dauphine hands – Elegant tapered hands fanning out. Found on dress watches.
Baton hands – Rectangular shape but wider than stick hands. Bold style.
Luminous hands – Coated in lume paint to glow in the dark. Improves night legibility.

Watch hands were traditionally made from steel or brass but modern hands use materials like gold, aluminum, carbon fiber, synthetics, and Lumibrite. High end brands often use intricately finished hands with polished edges or accents.

The hands are attached to the watch movement. As the movement operates, it rotates the hands around the dial to display the current time. The hands are color-coordinated to contrast with the watch dial for optimal legibility.

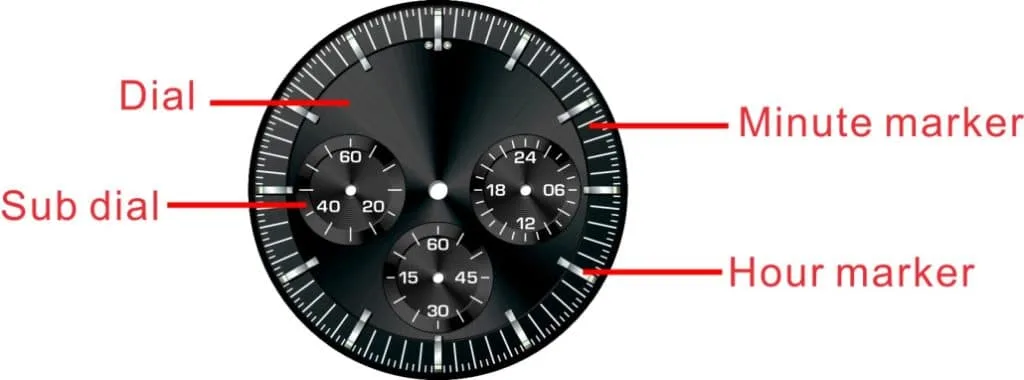

Watch Dial

The dial is the face of the watch that displays the time. Located under the watch crystal, the dial features markings to indicate the hours around the periphery. It provides the background for the hands to contrast against as they move to display the time.

Dials come in a wide variety of colors, materials, textures, and designs. Common dial colors include white, black, silver, blue, and brown. Dials may feature a smooth solid color or intricate patterns like sunburst, guilloché engraving, or mosaic designs.

Popular dial materials include enamel, lacquer, carbon fiber, metal, stone, wood, porcelain, mother-of-pearl, and synthetics. High-end luxury watch dials sometimes incorporate precious materials like meteorite, malachite, aventurine, or gemstones.

The hour markers indicate the hours. They may be represented as indices, Roman numerals, Arabic numerals, dots, or stones. Lume paint can be applied to markers and hands to make them glow. A rehaut is a chapter ring just inside the dial with seconds markings.

Extra features may also be embedded in the dial like a date window, power reserve indicator, chronograph sub-dials, or a moon phase display. Text lettering is sometimes included like the brand name, depth rating, or automatic movement designation.

The texture and ornamentation of the dial provides style and visual interest. Dial design is an important aesthetic consideration when choosing a watch to complement your individual taste.

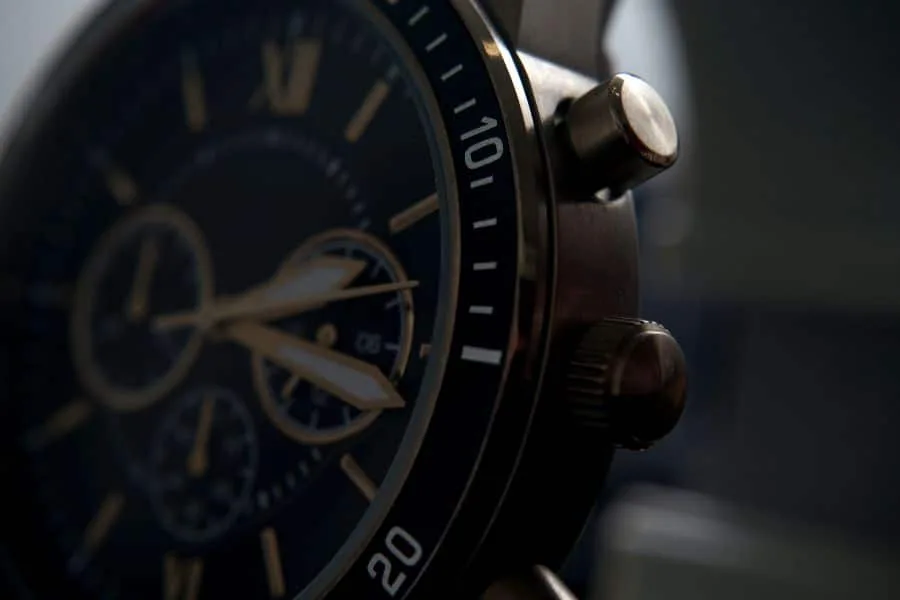

Watch Crown

The crown is the knob on the side of the case that allows you to set the time and date on your watch. Pulling the crown out from the case puts the watch in its time-setting position, stopping the watch hands from moving so you can adjust the hands. Rotating the crown will move the hands forward or backward until you set your desired time. The crown also allows you to adjust calendar complications like the date window. Once finished setting the watch, you simply push the crown back into its normal position against the case to start the hands moving again. The crown provides an easy way to adjust your watch to keep proper time when wearing it daily. Some watches have screws or locks on the crown to ensure water resistance when underwater. The crown finishes the watch case design and needs to be sized appropriately for the case style and your ability to grip and turn it easily.

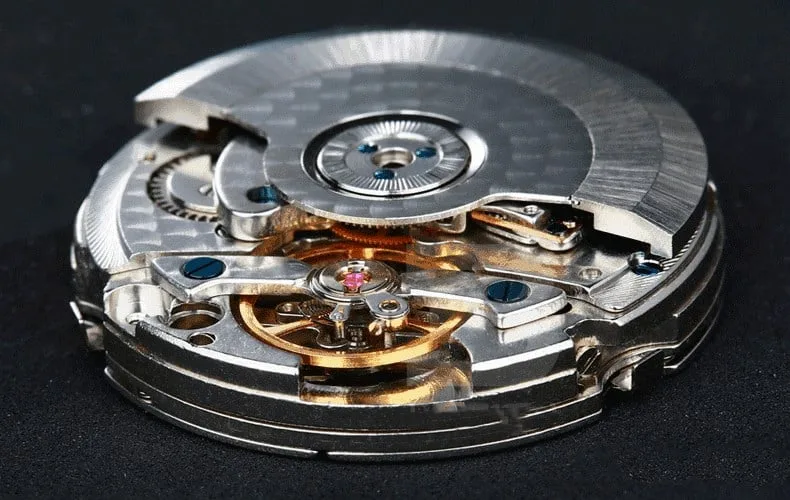

Watch Movements

The movement is the inner mechanism or “engine” of a watch that powers it and directs all functions. Also called a caliber, it consists of many intricate parts working together to track time.

There are two main categories of movements – mechanical and quartz. Mechanical movements operate using gears, springs, levers, and escapements without electricity. Automatic mechanical movements are self-winding from the motion of the wearer’s wrist. Quartz movements run on batteries and use a vibrating quartz crystal to keep very precise time.

Common types of movements include:

Manual – Must be wound by turning the crown periodically
Automatic – Winds itself automatically from natural wrist motion
Chronograph – Has stopwatch functions for timing events
GMT – Displays multiple time zones simultaneously
Perpetual calendar – Accurately adjusts for short and long months
Skeleton – Has a transparent or cutout design to showcase the mechanism

Movements come in varying levels of complexity and decoration. Simpler movements just tell the time. More complex movements have extra components called complications.

Luxury watch movements are often intricately decorated with techniques like Côtes de Genève stripes, circular graining, engraving, and jewels. The finissage refers to this fine hand decoration of movements.

Watch Complications

Complications refer to any functions of a watch beyond simple time telling. By adding extra components and mechanics, watchmakers create complicated movements that perform additional operations.

Some common complications include:

Chronograph – Measures elapsed time like a stopwatch
Calendar – Displays day, date or month
Moonphase – Shows moon phases based on lunar cycle
Power reserve – Indicates how much power remains wound in the mainspring
Alarm – Sounds an alert or chime at a set time
GMT – Displays a second time zone on a 24-hour hand
Annual calendar – More accurate than standard by accounting for 30/31 day months
Perpetual calendar – Tracks the date over a 100 year span, accounting for leap years
Minute repeater – Audibly chimes the time at the push of a button
Tourbillon – Rotating mechanism that increases accuracy by negating the effects of gravity
Astrolabe – Celestial map showing position of stars and planetary bodies

Complications require great skill, research and development to design. They can significantly increase the value and prestige of high end watches. However, they also add to the cost and require greater maintenance.

Watch Straps and Bracelets

The strap or bracelet is the band that secures the watch to your wrist. Along with complementing the case design, it needs to be durable and comfortable for daily wear.

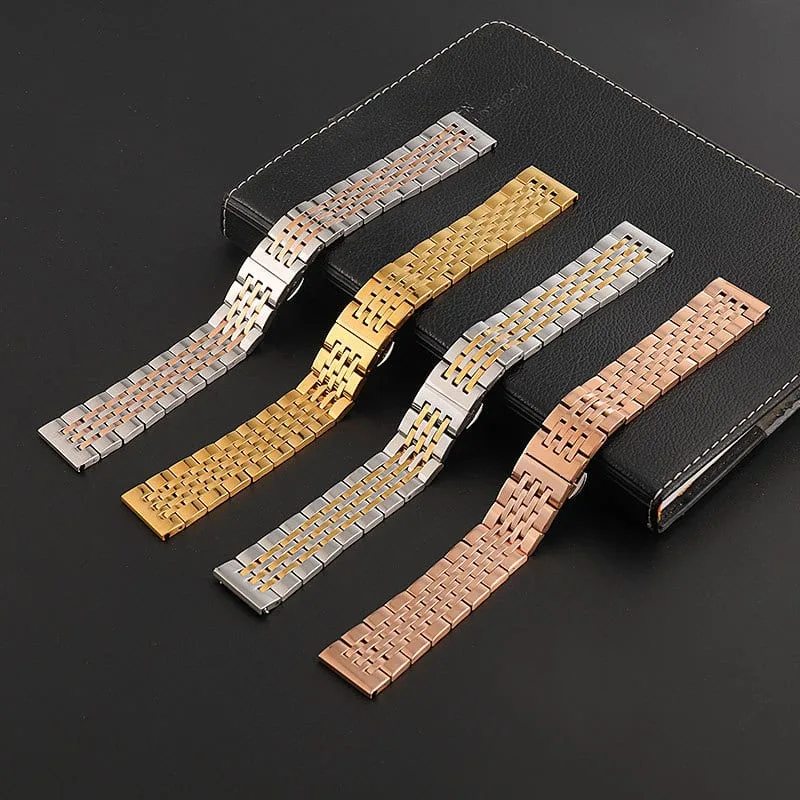

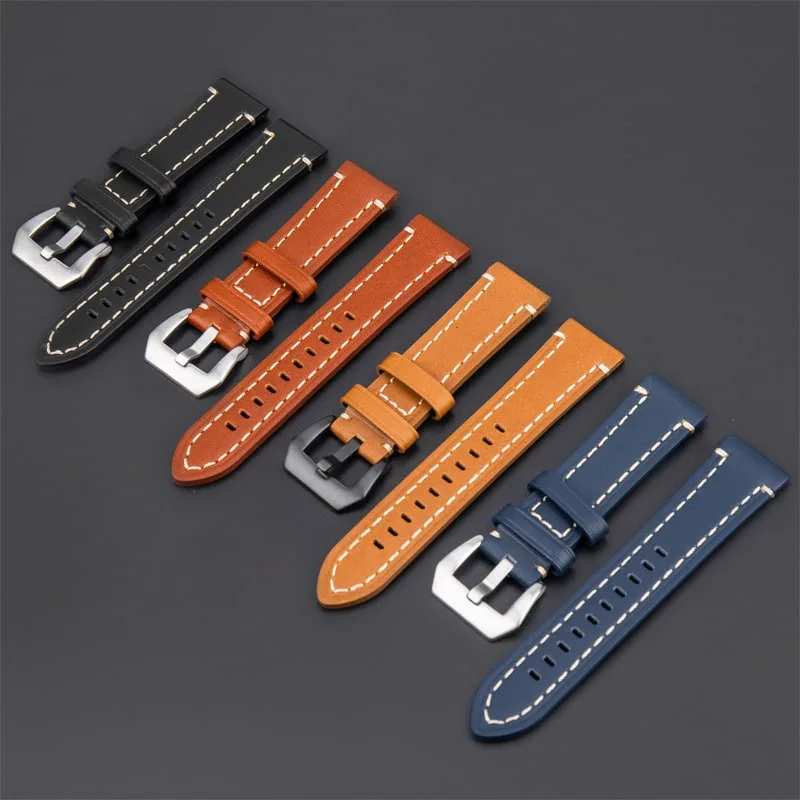

Leather straps come in many styles, colors, and quality levels. Alligator, crocodile, calfskin, and cowhide are common leathers used. Metal bands like gold, silver, steel, or titanium can have a bracelet or mesh design.

Rubber straps provide flexibility and wet suitability. Popular options include silicone rubber, natural rubber, and synthetic rubber like polyurethane. Nylon fabric straps are lightweight and abrasion-resistant.

Common clasp types include buckle, deployant, fold-over safety, push button release, and magnetic closures. More adjustable clasps allow you to fine-tune and customize the fit.

Some additional factors to consider when selecting a watch strap:

Width – 18mm to 24mm is typical for men and 14mm to 16mm for women
Interchangeability – Some have quick release bars to swap out straps easily
Water resistance – Leather and fabric absorb water unlike steel and rubber
Style – Formal versus casual looks; color coordination with watch case
Personal comfort – Individual preference on feel, breathability, flexibility

The strap or bracelet complements your watch aesthetically while securing it comfortably on your wrist. It’s an important ergonomic and styling element to evaluate when shopping for a watch.

Conclusion

While a watch may seem simple on the outside, inside it contains a complex system of intricate parts working in unison to track the passage of time. The case, crystal, hands, dial, movement, complications, and strap all serve important form and functions.

Understanding the anatomy of a watch allows you to truly appreciate the meticulous engineering, research, and craftsmanship that watchmakers devote to these tiny timekeeping machines. It also enables you to make informed decisions when purchasing a watch, taking into account the quality and details of the components.

From the beauty of the finished case to the complex mechanics of the movement, every part matters in making a high performing, visually appealing watch. The next time you strap a watch to your wrist, take a moment to admire the interconnected details that make it tick. A simple glance at your watch now reveals a whole new world of innovation and design on the inside.
